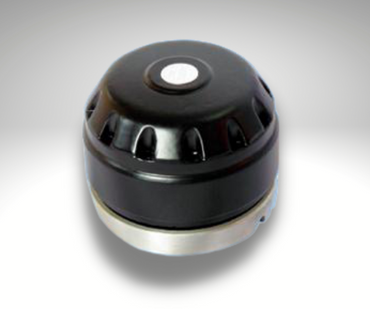

External Rotor Motors - 72 mm
Like any other conventional Motor, the External Rotor Motor has a wound Stator and an Aluminum Die Cast Rotor. The only difference is that in this case the Rotor moves externally around the stator.
Salient Features :
-
- CE Mark and manufactured to EN 60335-1
- Compact in size.
- Continuous Rating with High Efficiency.
- Variable Speed by changing Input Voltage or Frequency.
- Dynamically Balanced in 2 planes as per grade 2.5 of ISO 1940-1973 in accordance to VDI 2060.
- Winding Surge and H.V. Tested.
- Double Shielded pre lubricated Ball Bearings.
| Sr. No. | Model | Dimm. (MM) | Volt (V) | Watts (W) | Current (A) | Speed (rpm) | Capacitor (uF) | Air Volume (m3 / hr) | Noise (dBA) | Net Weight (Kg.) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | ||||||||||
| 1 | MO23/72-28/A1 | 20 | 60 | 230 | 28 | 0.18 | 2900 | --- | --- | 48 | 0.7 |
| 2 | MO23/72-28/A2 | 25 | 65 | 230 | 35 | 0.22 | 2900 | ---- | ---- | 48 | 0.9 |
